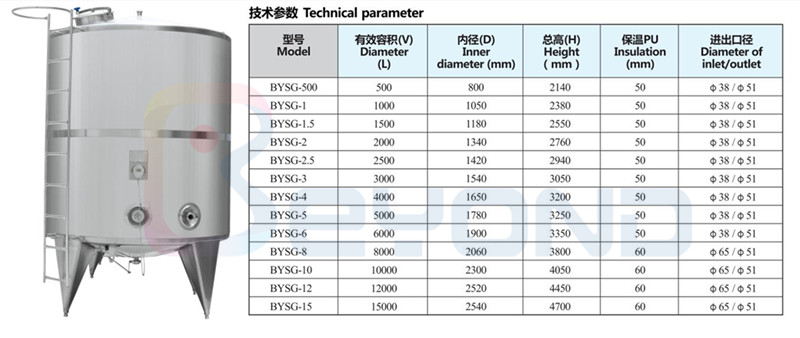

双层保温罐 Dual-layer storage tank series

双层保温罐(立搅拌、侧搅拌和无搅拌)

Dual-layer storage tank series(Vertical,side or no agitator)


功能用途:

主要适用于乳品、果汁饮料、啤酒酿造和化工、生物工程等各类液态物料需要保温时的储藏、搅拌混

合等。

Application:

Most applicable for storage and mixing of all kinds of liquid products when need insulation in dairy products,juice,beer and brew,chemistry,and biology engineering;


技术说明Specifications:

材质:

全部采用优质Sus304-2B或SUS316L

不锈钢,内胆6=3-4mm,外包=2mm;

Material:

All material used is high quality sus304-2B or SUS316L

stainless steel,inner shell thickness =3-4mm and outer wall 2mm;


结构特征:

双层结构,带PU保温,保温层厚50-60mm;圆柱形简体,三角形或圆柱形支腿;无搅拌或带搅拌,搅拌形式有桨式,锚式,推进式

和框式等;

Structure feature:

lsolated design(double layer).with 50-60mm PUas insulation;hcylindrical shape,triangle or cylinder legs Agitator types:Without agitator;wing agitator;anchor type;propeller type;frame type;


标准配置:

a)密闭式人孔

b)防蝇防虫透气帽

c)PT100数显温度计

d)CIP清洗球

e)物料进/口

f)拉杆阀

g)可调书三角形支腿

Standard attachments:

a)One air tight side manway;

b)Anti buterfly and dirt air vent;

c)One PT100 thermometer,temperature indication range 0~100℃;

d)CIP cleaning ball;

e)Product inlet/outlet

f)Dichage valve with unior:

g)Adjustable legs
