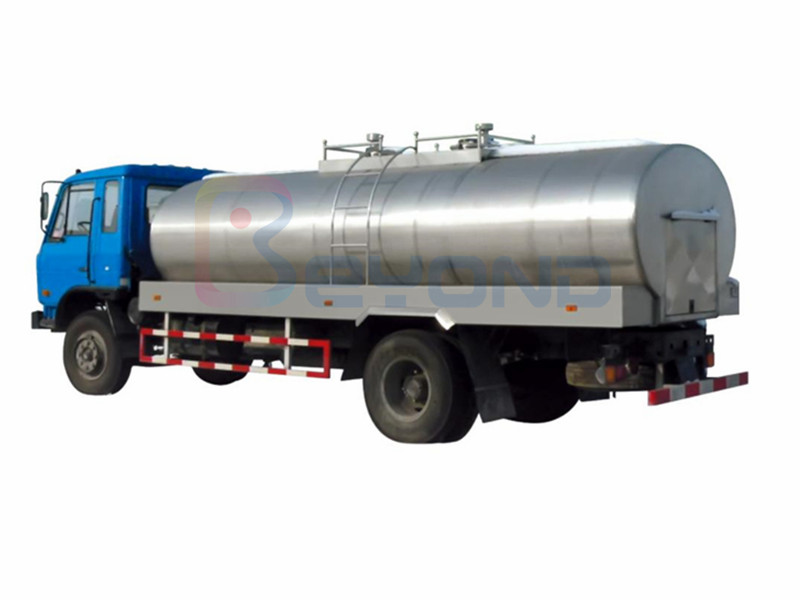

液态食品车载罐Milk tanker on truck

广泛运用于牛乳等液态食品的长距离运输，罐体内外全部采用优质SUS304-2B不锈钢制造，罐体夹层采用绝热结构和PU聚氨酯发泡新工艺，罐体内壁的转角均采用大圆弧过渡无死角，罐内设有清洗喷头，易于清洗，符合行业标准和食品卫生要求。罐内设有防撞板，减少运输过程中物料的惯性冲击力。

Overview The milk tanker is widely used for long distance transportation of milk or other liquid products.The tank wall adopts high quality SUS304-2B stainless steel，the jacket adopts high density PU as insulation with new procedure，all the inner corners are well radius to avoid sanitary dead angel；and CIP spraying balls are fixed inside which enables easy cleaning.It is up to industry standard and food sanitary requirements.

使用本罐可保证液态食品在运输过程中的质量，改善卫生条件，减少损耗，降低运输费用和节约劳动力。不运输液态食品时，可将罐卸下，做货车使用。

The tank can keep the milk in good quality during the transportation，improve the sanitary conditions，reduce transfer cost and save labor.It can be as s truck when it does not transfer liquid milk，and download the tank.

技术参数Technical parameter

产品规格：2000L、3000L、4000L、5000L、6000L、8000L、10000L、12000L、15000L、20000L

温度：-20℃~+40℃。罐内液温4±1℃，满载8小时变化52℃

标准配置：快开式密闭人孔、呼吸阀、CIP清洗管路、放料口（配阀）

配件材质：均为SUS304，密封圈选用食品卫生级硅橡胶

外形尺寸：根据用户所提供汽车底盘的尺寸

Product specification：2000L，3000L，4000L，5000L，6000L，8000L，10000L，12000L，15000L，20000L.

Temperature:-20℃~+40℃，Liquid temperature in the tank：4±1℃

Temperature change in eight hours loading：≤2℃

Standard fiting material:quick open seal manhole，breathing valve，CIP cleaning pipe，material imputing hole

（valve attached）

Fitting material quality:SUS304，seal packing collar adopts food sanitary silica gel.

Size:according to the size of truck batholith provided by customer.
