萃取罐Extracting tank

萃取罐主要用来萃取各类茶、中草药。

This extracting tank is used to extract tea from the tea leaves，or make medicine from herbal medicine.

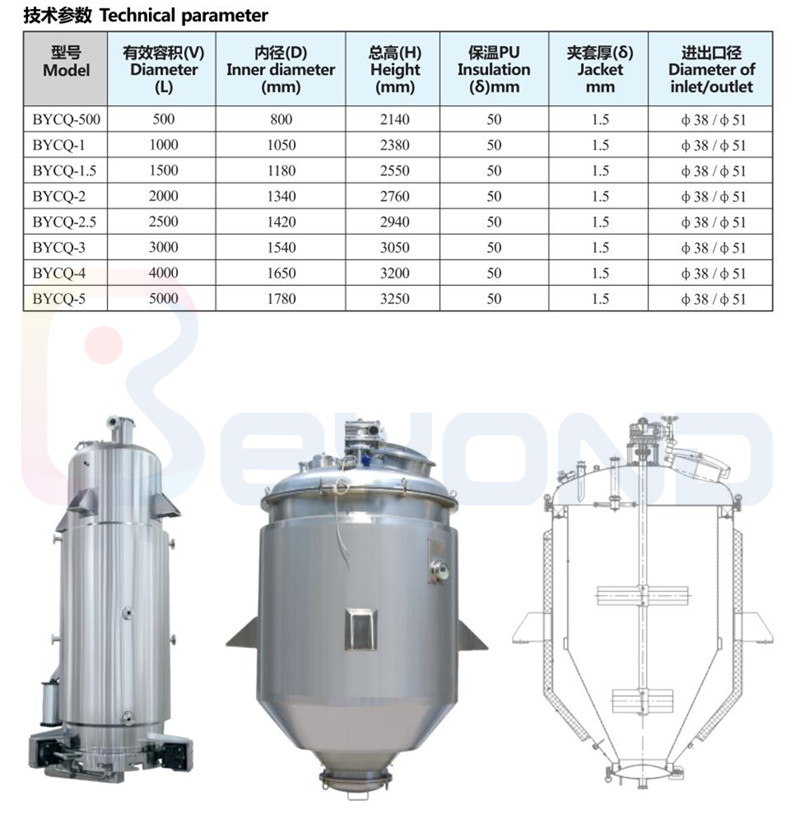

材质全采用SUS304-2B不锈钢制造，罐体夹层采用加热结构和PU聚氨酯发泡工艺保温，带有蒸汽加热夹套，顶部中置桨式搅拌，密封人孔，高低液位传感器，温度传感器，下出提取液，下排渣，椭圆上封头，锥形下封头>45度，可根据客户配气动出料结构。

All the tank wall is made of high quality SUS304-2B stainless steel，the jacket adopts high density of PU as insulation and was made out of new procedures；and it is with steam heating jacket；the paddle type agitator is mounted from top at the centre；other standard attachments such as:airtight manhole，high and low level probe，temperature sensor，the extracted liquid product is discharged from bottom outlet；dregs are also discharged from bottom where a net is fixed to separate the dreg from the liquid product；the top cover is elliptical type and bottom base is of conical types.Pneumatic discharge device can be added according to the customer's requirement.
